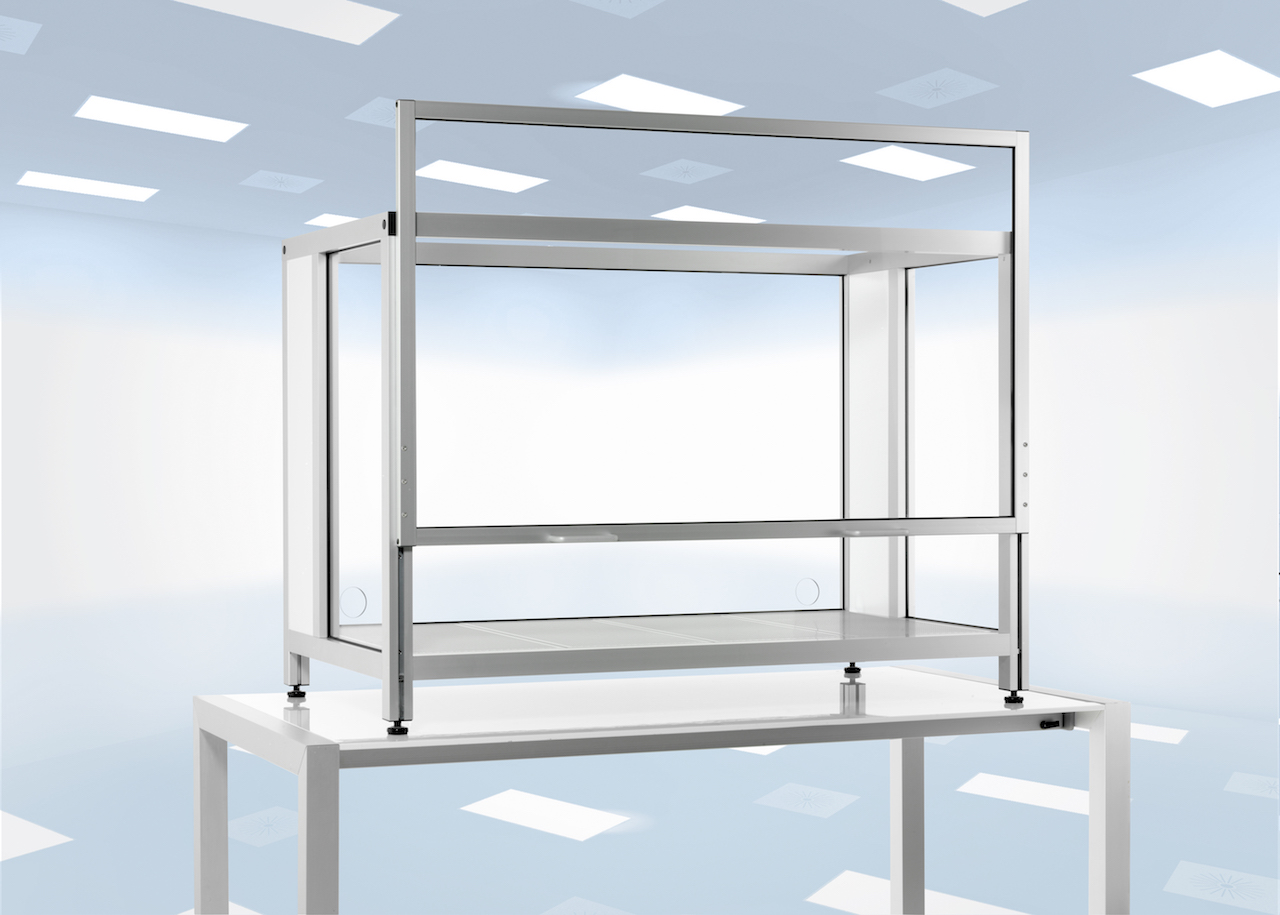

Protection box

The protection box PBS is used in the optics, analysis, and electronics industries to protect items against dust. However, it is not equipped with a filter module, but can be retrofit with one at any time to produce a laminar flow box.




Dimensions:

Name Weight
Protection box PBS 37 47 kg
Protection box PBS 56 56 kg
Protection box PBS 75 64 kg
Protection box PBS 93 72 kg
Protection box PBS 112 82 kg



Interior height   805 mm
Total height 940 mm
Height with the door open 1441 mm
