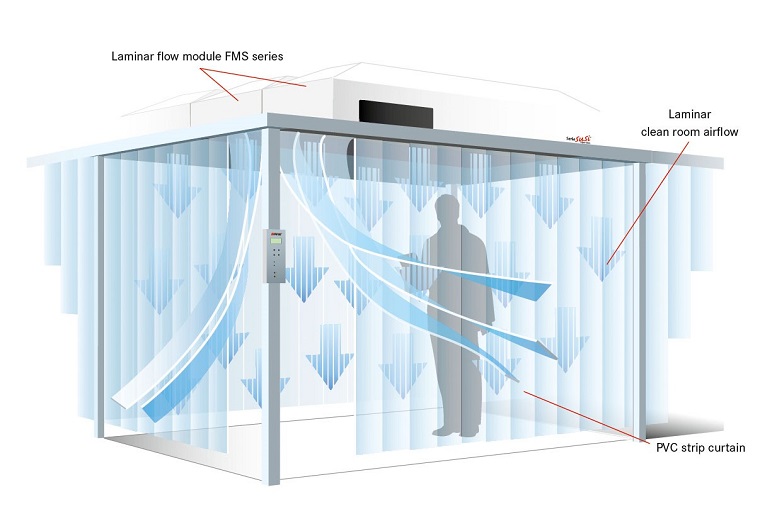

Clean room cell soft mInfos eng

The strip curtain in the "soft wall" version makes it possbile to implement a simple, flexible clean room. Recesses and walls which follow the contours of machines can be achieved without difficulty.


Equipment options:

  • Support frame made of aluminium or stainless steel (dimensions to order)
  • Airlock for materials and personnel
  • Completely odor-free or antistatic strip curtain
  • Strip width from 200 to 1500 mm
  • Roller-mounted design


High performance filter

The Spetec laminar flow box FMS uses a type H 14 filter. It features a retention rate of 99.995%. This means that at a particle size of 0.12 μm (according to MPPS), the filter removes at least 99.995% of all particles. At a particle size of 0.3 μm, the retention rate is approx. 99.9995%.

By using the H 14 filter, the Spetec laminar flow module has an isolation factor of 10. This means that the air quality inside the laminar flow is improved by a factor of at least 10 000 relative to the ambient air.

Application example:

With the use of a SPETEC® clean room cell the particle concentration is reduced from approximately 15 Mio/m3 (size 0.12 μm, MPPS) to about 1,500 particles within the cell. This corresponds with a room class of DIN ISO 5.



Control panel

The flow velocity can be controlled in 8 steps. The controls include the “night reduction” (eco) mode to save energy costs, and the “MAX” function to clean the workstation, parts, or equipment if applicable.

  • 8 level adjustment of the flow velocity with night reduction and flushing function
  • LCD display with selected flow velocity in m/second
  • Service and interval indicator, dependent on the usage period
  • LED fault indicator
      Optional:
  • Connection options for building control systems (remote monitoring)
  • Interior light switch on the control panel
  • Automatic flow adjustment with filter replacement indicator

Through the use of latest generation EC fans with a very high efficiency, the power draw is reduced to a minimum.


Example for SPETEC clean room:

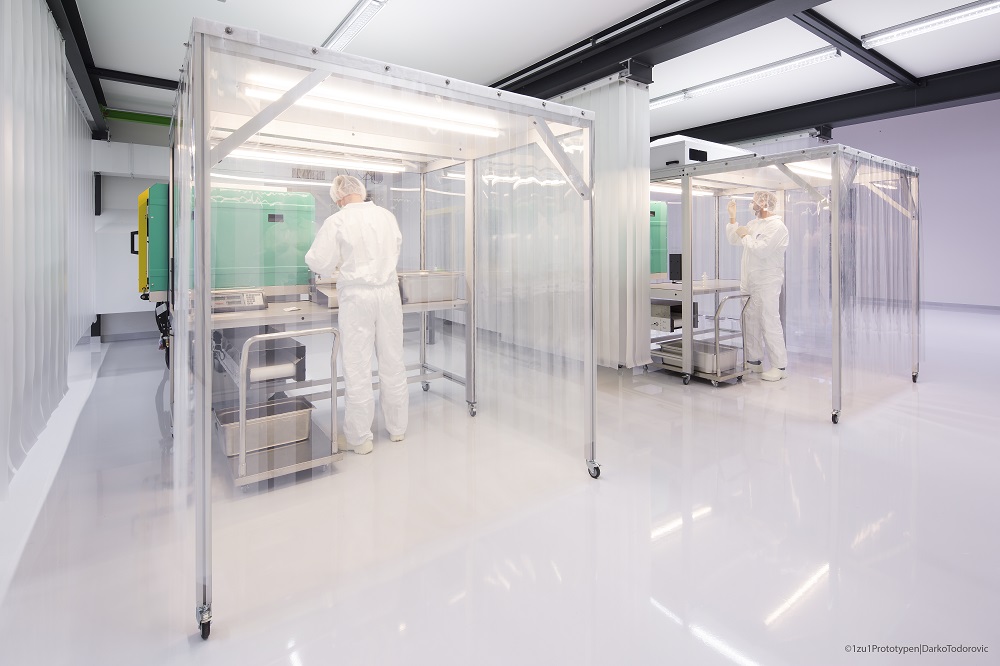

Clean room application plastic production
