detailbild laminar flow

Laminar flow module Basic

The Basic module is a simpler, more affordable alternative to the laminar flow module of the SuSi® series.

The laminar flow module is offered in a simple, robust version. With an EC-motor with step-less speed regulation the air flow speed can be adjusted to the requirements.

Through the  primary/secondary function one control unit is able to control up 100 secondary-modules (optional).

The laminar flow module can be used as a separate filter unit or in combination with a clean room cell. Retrofitting into a laminar flow box is not possible.



Dimensions

Name Filter dim.in mm Kg
Laminar flow module FMS 75 Basic    1220 x 610 30

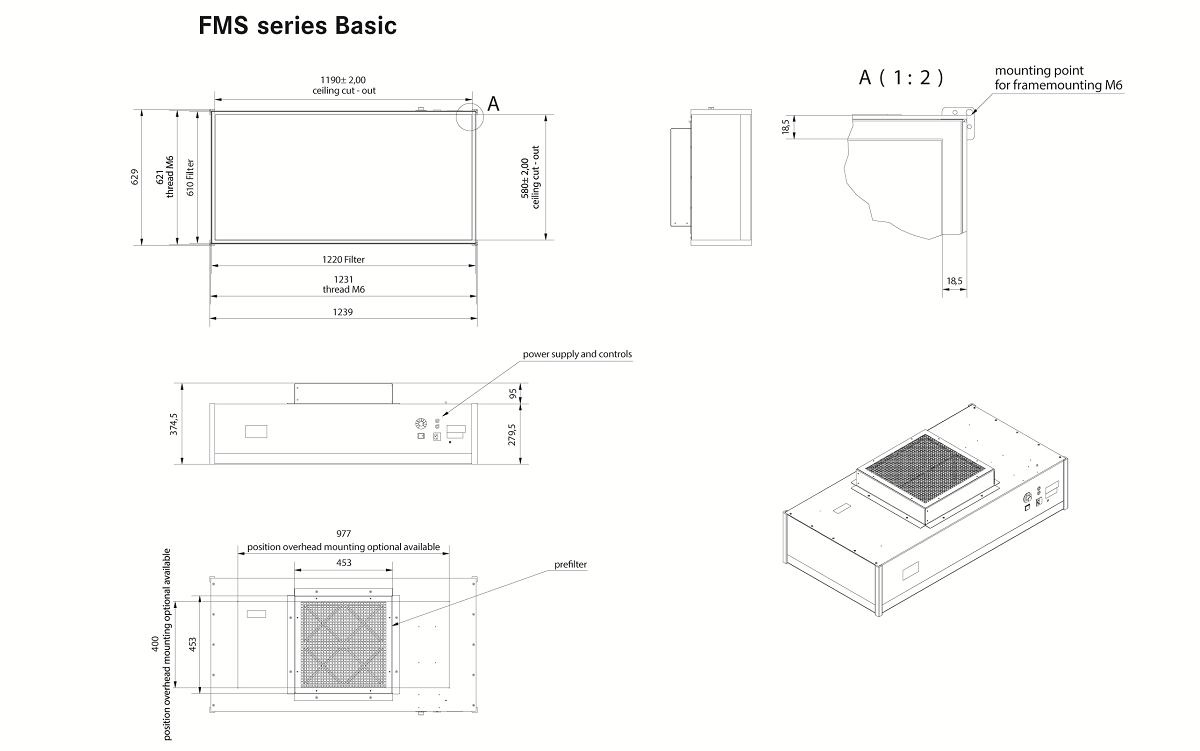

Drawing and technical information about Laminar Flow Modul Basic Series

Laminar Flow FMS Basic Modul
