detailbild laminar flow

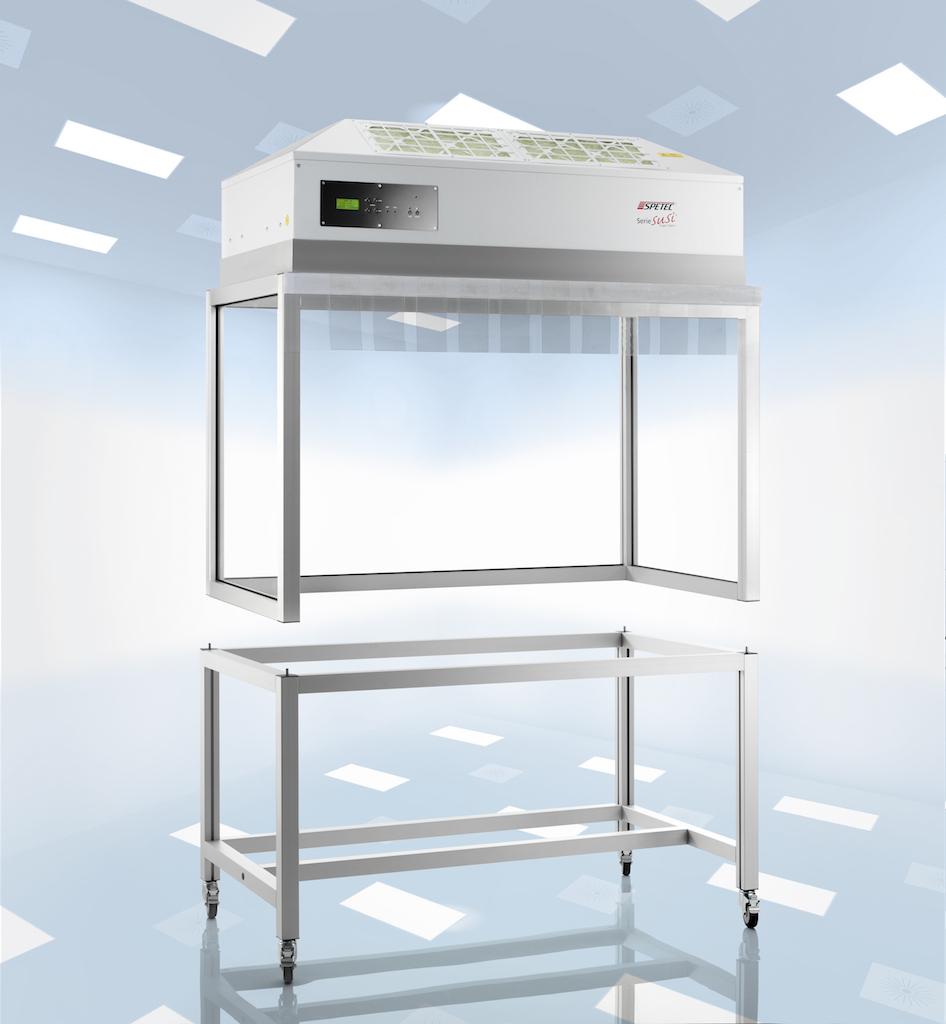

1 Base frame on casters. As a table replacement for the FBS series, results in a mobile clean room workstation.

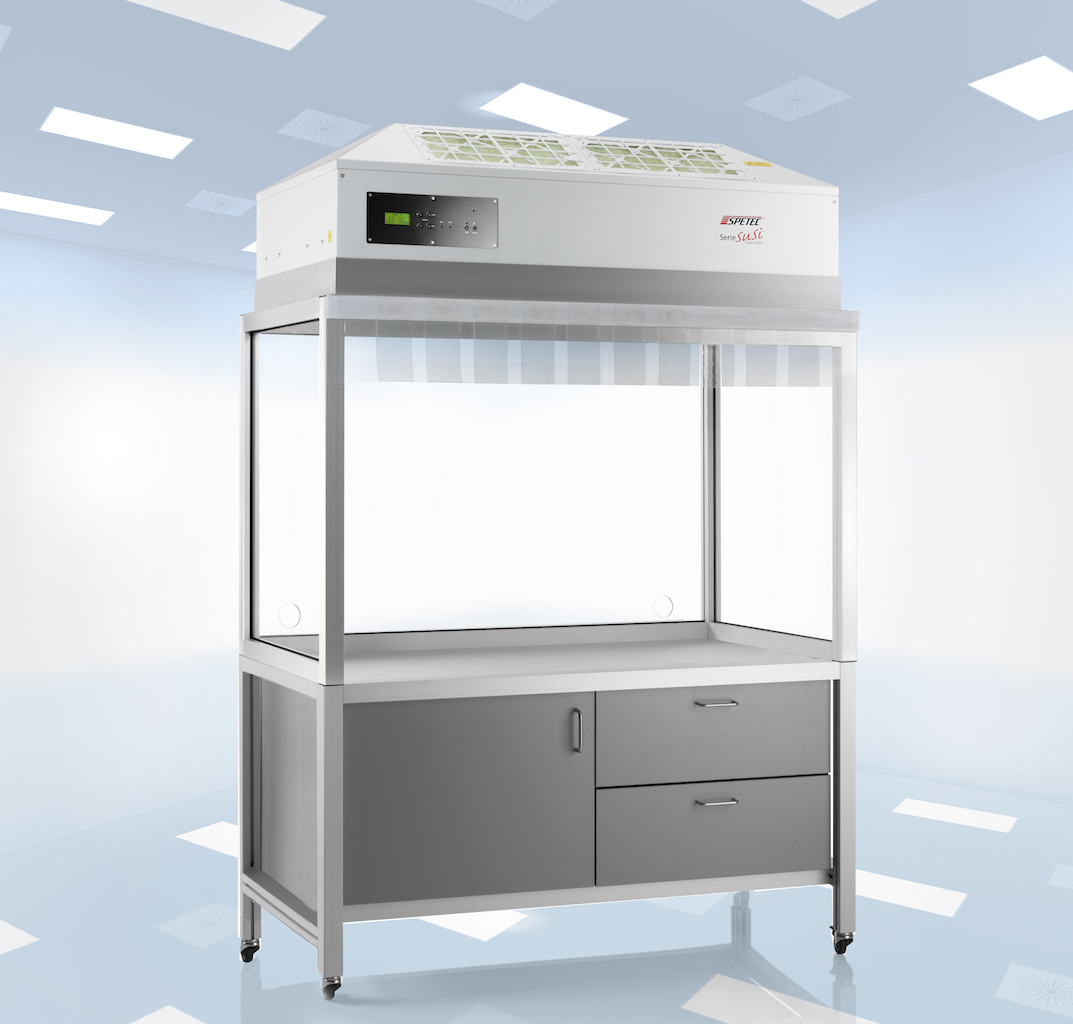

2 Laboratory cabinet with drawers. Provides storage space to keep laboratory materials and other tools, only available in combination with option 1.

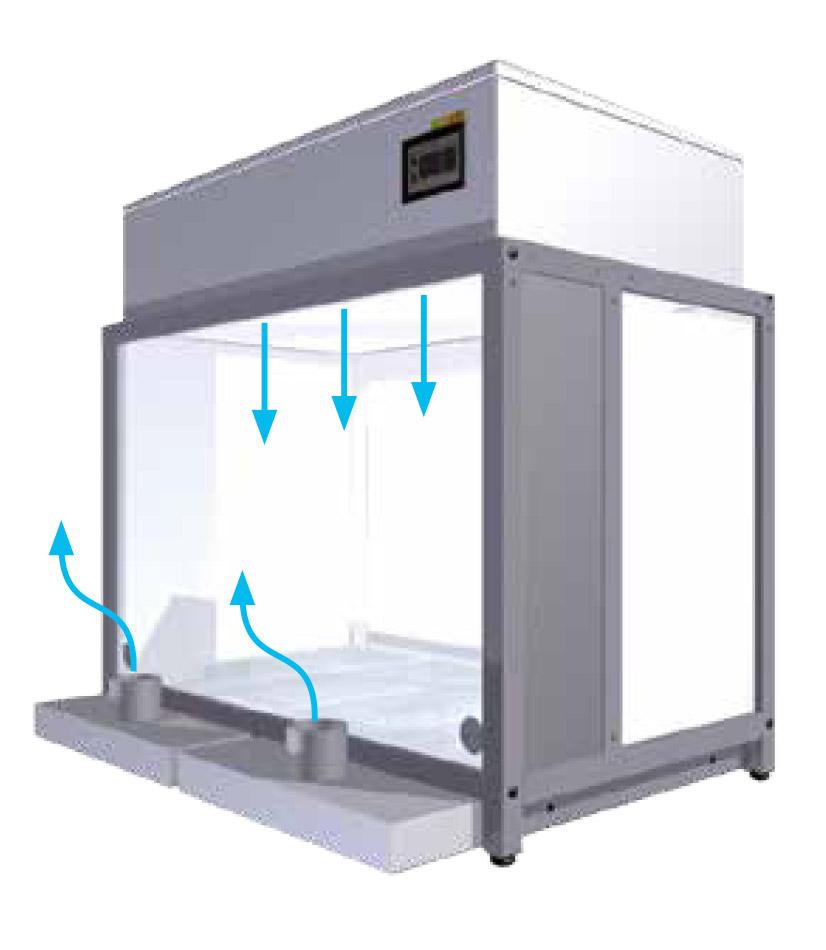

3 Extraction well below the perforated floor, for connection of an extraction system or a central building extraction system. To divert the “contaminated” air flowing through the box.
4 Interior light, FBS series fluorescent lamp.
5 230 V connection inside box. Installation of a clean room compatible triple outlet inside the box..
6 Control via PLC interface.
ON/OFF and increase/decrease flow velocity functions, ilter replacement indicator and error indicator.

Control options
(control voltage 12V to 24V)
  • Power on/off
  • Light on/off
  • Increase/decrease flow rate by one step
  • PLC interface

Interface feedback
  • Power has been turned on/off
  • Light has been turned on/off
  • Filter replacement required
  • An error occurred (Fan is not turning)
7 Automatic flow adjustment with filter replacement indicator
8 Ceiling mount
9 Stainless steel pre-filter cartridge
(size 37–56 per 2 units, size 75–112 per 4 units)
10 Replacement H14 filter
11 H14 PTFE main filter
12 Pre-filter (size 37–56 per 2 units, size 75–112 per 4 units)
13 Worktop made of solid stainless steel, not perforated
14 Worktop made of sealed hard laminate, not perforated
15 ESD-compatible version for FBS series
16 FMS in special colour according to RAL table
17 Plastic coating, acid-resistant for FBS series
18 Plastic coating, acid-resistant for base frame on casters
19 FMS series with master function and wired remote control
20 Telescoping arm for exhaust hood
21 UV interior light
22 Version made with UV-resistant polycarbonate box

Laminar Flow Box mit Untergestell auf Rollen in verschiedenen Größen

Option 1

Laminar Flox Box mit Einbauschrank für Stauraum im Reinraum

Option 2

Laminar Flow Box mit Absaugwanne in verschiedenen Größen

Option 3
